CAN

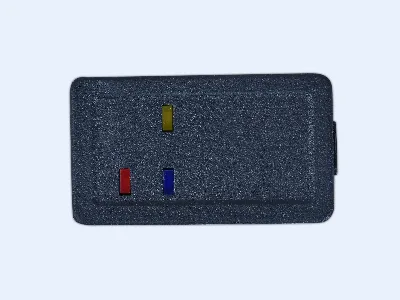

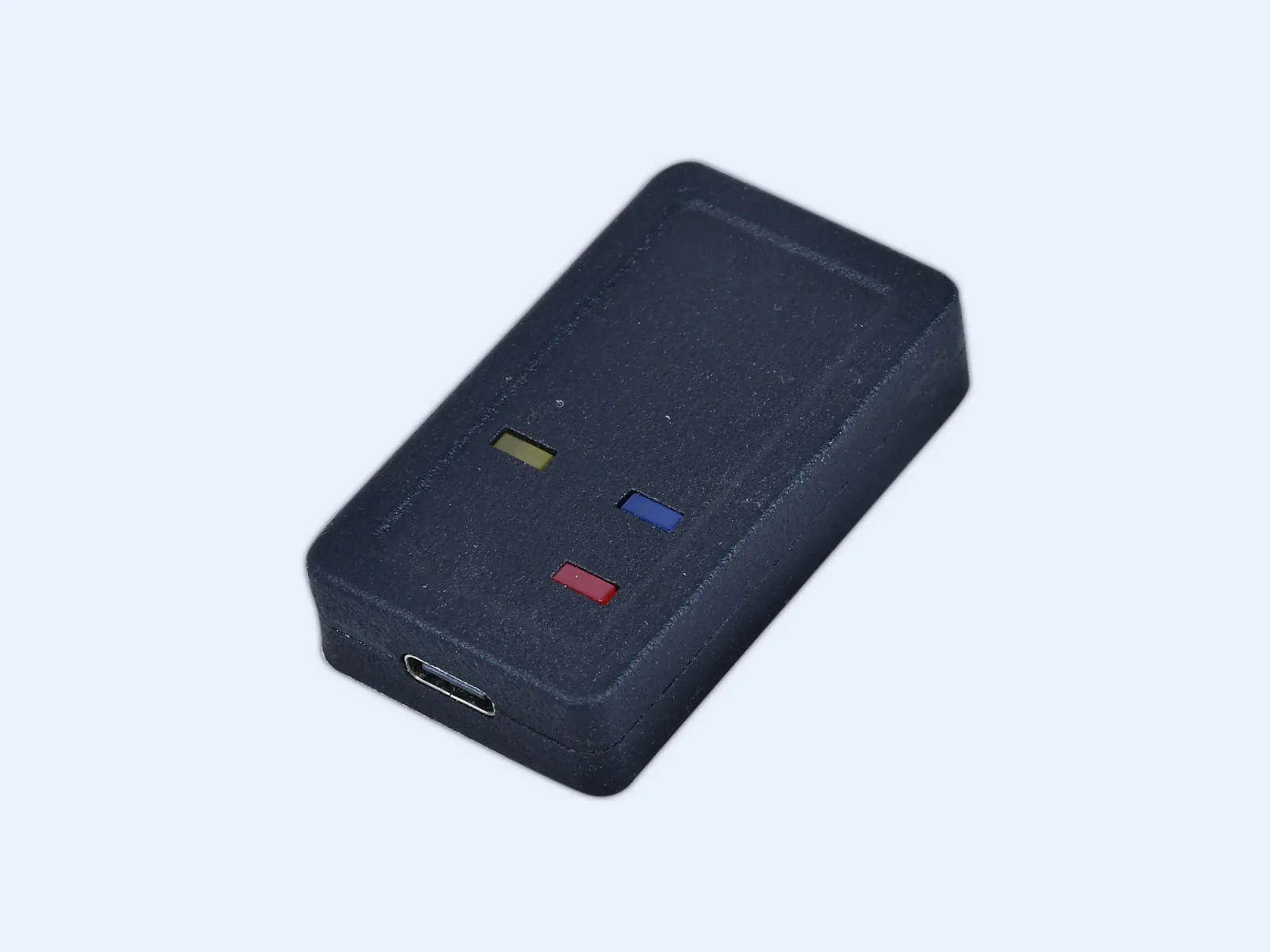

PSCAN Air
₹4,900
The PSCAN Air is a compact, low‑latency commercial‑grade USB to isolated CAN interface designed for professional automotive, industrial, and embedded applications. It supports classic CAN 2.0A/B up to 1 Mbps, making it suitable for diagnostics, development, and long‑term testing…
Also known as USB CAN analyzer, isolated CAN adaptor
Bitrate5 kbps to 1 Mbps
IsolationYes
InterfaceUSB 2.0 High Speed
Timestamp Resolution1 μs
Supported Operating SystemsWindows 10/11, macOS 11+, Linux
Dimensions55 x 33 x 10 mm
1-year warranty
7-day returns
The PSCAN Air is a compact, low‑latency commercial‑grade USB to isolated CAN interface designed for professional automotive, industrial, and embedded applications. It supports classic CAN 2.0A/B up to 1 Mbps, making it suitable for diagnostics, development, and long‑term testing in the field or on the bench. The isolated CAN transceiver enhances safety and noise immunity when connecting to real vehicles and industrial systems, helping protect both the host PC and the target hardware. Its small form factor and high‑speed USB 2.0 connectivity make it easy to deploy in tight spaces, mobile setups, and service toolkits.
InterfaceUSB 2.0 High Speed
CAN StandardsCAN 2.0A/B, ISO 11898
Bitrate5 kbps to 1 Mbps
Messages/SecondUp to 8000
Error DetectionSupported
Silent ModeSupported
Timestamp Resolution1 μs
IsolationYes
Power SupplyUSB Power (5V)
Bus Fault Protection±52V
Dimensions55 x 33 x 10 mm
Supported Operating SystemsWindows 10/11, macOS 11+, Linux
- Plug-and-play setup
- Compact design
- LED indicators
- Windows/macOS/Linux support
- Free software included
