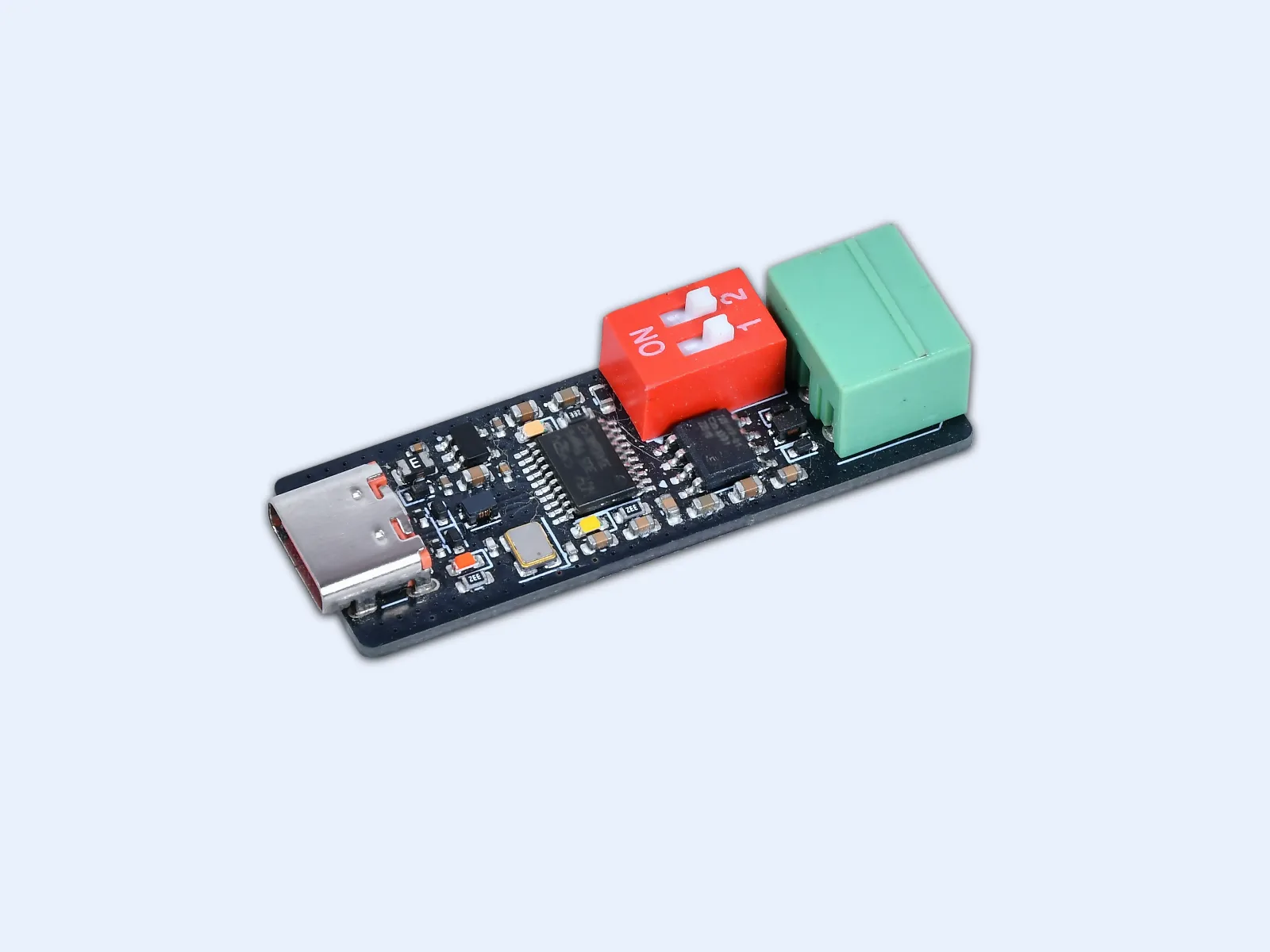

PSCAN Nano
₹2,000
The PSCAN Nano is an affordable, professional-grade USB to CAN adapter for hobbyists and students (non-commercial use) — the easiest way to start working with CAN bus on a student budget. Its USB 2.0 High Speed interface supports classic…
Also known as USB CAN analyzer, USB-CAN adapter, student CAN bus adapter, USB 2.0 High Speed CAN interface
Bitrate5 kbps to 1 Mbps
IsolationNot Supported
InterfaceUSB 2.0 High Speed
Timestamp Resolution1 μs
Supported Operating SystemsWindows 10/11, macOS 11+, Linux
Dimensions55 x 15 x 4 mm
1-year warranty
7-day returns
Software, drivers and documentation are in the Downloads tab below
The PSCAN Nano is an affordable, professional-grade USB to CAN adapter for hobbyists and students (non-commercial use) — the easiest way to start working with CAN bus on a student budget. Its USB 2.0 High Speed interface supports classic CAN 2.0A and 2.0B at bitrates from 5 kbps to 1 Mbps, with 1 µs timestamps, low latency and no frame loss.

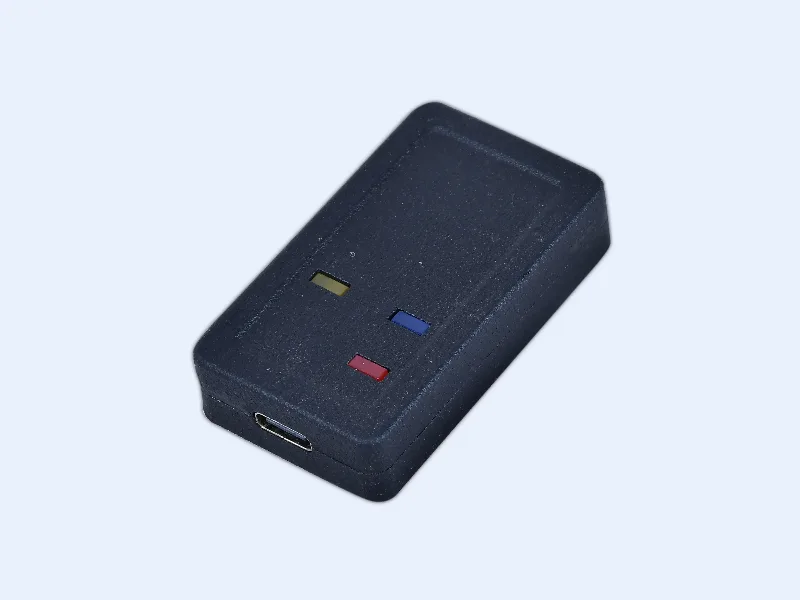

Unlike its isolated siblings, the Nano is a non-isolated interface, which keeps the price down for lab benches, robotics projects and learning setups where galvanic isolation is not required. If you are connecting to vehicles or industrial equipment, step up to the isolated PSCAN Air or PSCAN Plus.
The software experience is the same as the commercial PSCAN lineup: cross-platform support for Windows, macOS and Linux (including SocketCAN) and a Python API — perfect for coursework, hobby automotive diagnostics, robotics and embedded experiments. Plug in over USB and you are reading CAN frames in minutes.
Unlike its isolated siblings, the Nano is a non-isolated interface, which keeps the price down for lab benches, robotics projects and learning setups where galvanic isolation is not required. If you are connecting to vehicles or industrial equipment, step up to the isolated PSCAN Air or PSCAN Plus.
The software experience is the same as the commercial PSCAN lineup: cross-platform support for Windows, macOS and Linux (including SocketCAN) and a Python API — perfect for coursework, hobby automotive diagnostics, robotics and embedded experiments. Plug in over USB and you are reading CAN frames in minutes.
InterfaceUSB 2.0 High Speed
CAN StandardsCAN 2.0A/B, ISO 11898
Bitrate5 kbps to 1 Mbps
Messages/SecondUp to 8000
Error DetectionSupported
Silent ModeSupported
Timestamp Resolution1 μs
IsolationNot Supported
Power SupplyUSB Power (5V)
Dimensions55 x 15 x 4 mm
Supported Operating SystemsWindows 10/11, macOS 11+, Linux
Downloads
Documentation
1 itemPlatformAll · v1.1.0 · 263KB
Download
Drivers
2 itemsPSCAN Native API Library
Native libraries for interacting with PSCAN devices: Windows DLL, macOS dylib, and Linux SO files.
Release history PlatformWindows, Mac, Linux · v0.2.0
Request access
PSCAN Python Library
PlatformWindows, Mac, Linux · v0.1.9
Download
Software
3 itemsPSCAN Studio
A CAN bus monitoring tool built on BUSMASTER, with significant enhancements and added features.
Release history PlatformWindows · v1.2.9 · 19MB
Request access
- High-speed USB 2.0 connectivity
- Powered through USB
- CAN 2.0A and 2.0B support
- LED status indicators
- Cross-platform Support
